TRP Cycling
EVO PRO
The TRP EVO PRO is a high-performance 4-piston brake built for downhill, enduro, and eMTB riding. With powerful braking, precise modulation, a light lever feel, adjustable reach and bite point, and 2.3mm rotor compatibility, EVO PRO delivers confident, consistent performance on steep terrain and long descents.
EVO PRO
Black / Right Hand Lever
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States

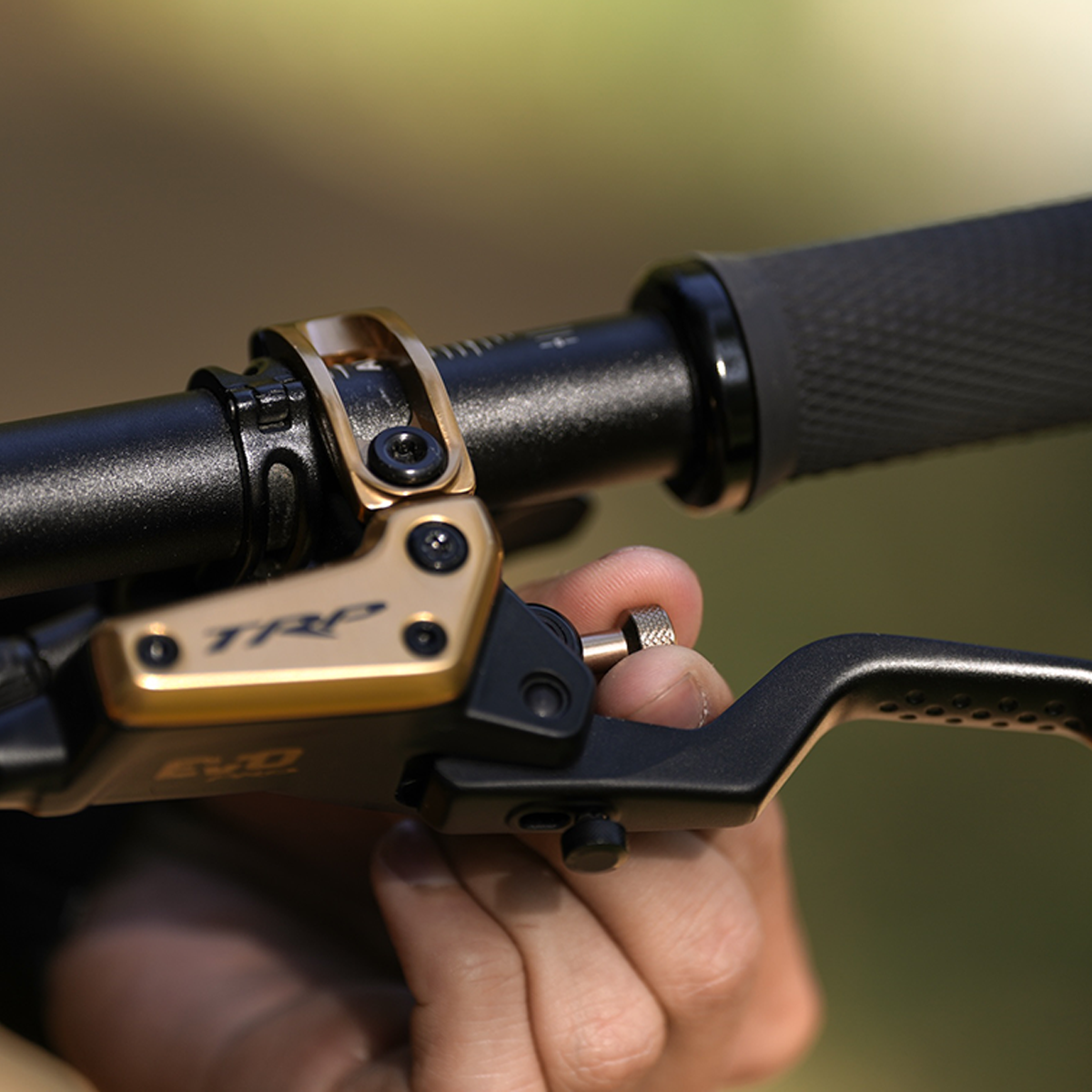

Pad Activation Dial (PAD)
Enables precise adjustment of lever modulation and bite point, giving riders full control over pad engagement during the lever stroke for a tailored braking feel.
World Cup PROven
Multiple World Cup victories at the highest level of downhill racing.

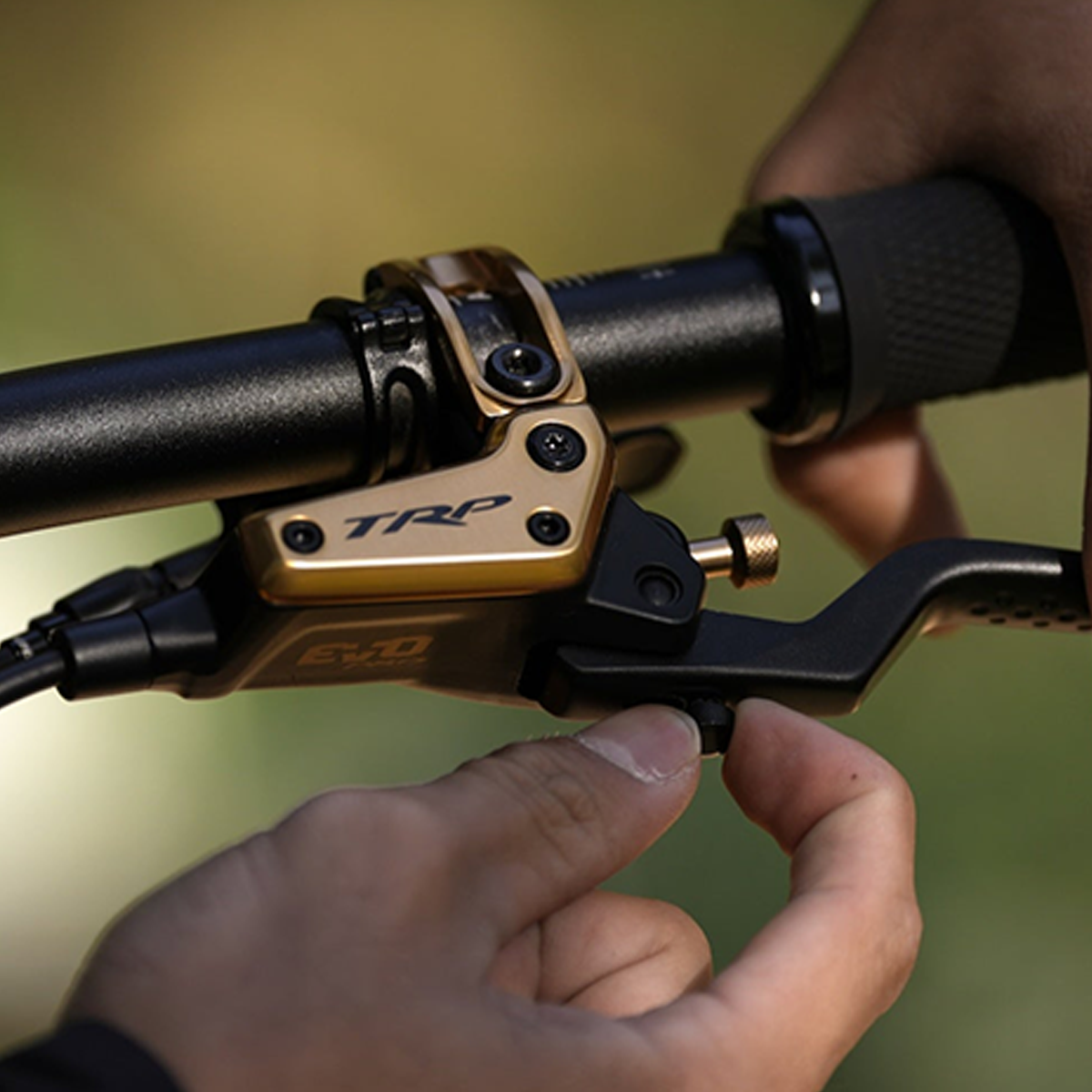

Lever Reach Adjust Dial
Offers customizable ergonomics with precise adjustment of the lever blade's starting position, ensuring optimal comfort and control for every rider.
2.3mm rotor compatible
Increased clearance, designed specifically for use with our industry leading 2.3mm thick rotors
5mm Brake Hose
Our 5mm hydraulic brake hose has been optimized for internal routing, improved thermal stability and increased rigidity for greater hydraulic pressure.
Route & Measure
Route the pre-bled hose through the frame. Measure the required hose length and mark the cut point with a silver marker.
Prep & Cut
Slide the compression nut cover, compression nut, and olive onto the hose, then cut the hose cleanly at your mark.
Install the Barb
Press the hose barb fully into the freshly cut end of the hose.
Connect & Tighten
Insert the hose into the lever, thread in the compression nut, and tighten to 5–7 Nm.
Inside the EVO PRO
Don't Just Take Our Word For It
Media Reviews
FAQ
TRP EVO PRO brakes are high-performance 4-piston hydraulic disc brakes designed for aggressive mountain biking, including enduro, downhill, bike park, and E-MTB riding. They are engineered for maximum stopping power, heat management, and consistent modulation.
Yes. TRP EVO PRO brakes are specifically designed for enduro racing, downhill riding, bike park use, and E-MTB applications. They provide high power output, strong heat resistance, and consistent braking on long descents.
TRP EVO PRO brakes use mineral oil. Mineral oil is less corrosive than DOT fluid, requires lower maintenance risk, and is stable under normal riding temperatures. Only use TRP-approved mineral oil when servicing.
TRP EVO PRO brakes use TRP-specific 4-piston pads and are available in three compound options, each identified by a distinct backing plate color. The resin pad, with a blue backing, delivers the most powerful bite and immediate response. The semi-metallic pad, with a red backing, is the quietest option and provides a balanced blend of power and modulation for controlled braking. The metallic pad, featuring a copper backing, is designed for heavy-duty applications, offering the most consistent performance in wet conditions and on long, demanding descents. You can view these pads here.
TRP EVO PRO brakes are compatible with 2.3mm thick TRP rotors. Common sizes include 180mm, 200mm, 203mm, 220mm and 223mm. Larger rotors are recommended for aggressive riding and heavier riders. View rotors here.
Please refer to our bleed procedure service guide for the full instructions. In general, to bleed TRP EVO PRO brakes: remove the wheel and pads, insert a bleed block, attach a syringe to the caliper port and a funnel or syringe to the lever, then push mineral oil from the caliper up to the lever. Reinstall the caliper bleed screw, purge any remaining air at the lever, seal the system, and clean any excess oil. Use only TRP mineral oil and a TRP-compatible bleed kit.
Yes. TRP EVO PRO brakes are well-suited for E-MTB due to higher power output, improved heat resistance, and reliable braking under increased bike weight. 203mm or 223mm rotors are recommended for optimal performance.
Common causes include contaminated pads or rotors, glazed pads, improper bed-in, or caliper misalignment. Clean rotors with bicycle disc brake cleaner, realign the caliper, or replace contaminated/ glazed pads and/ or rotor.
Ride at moderate speed and apply firm braking without locking wheels. Repeat 10–20 times per brake, gradually increasing force. Proper bed-in transfers pad material to the rotor and improves braking power and consistency.
Yes. They are recommended for riders over 200 lbs (90 kg), aggressive downhill riders, bike park laps, and long alpine descents. Pair with 203mm or larger rotors for maximum braking performance.
