Our drop bar groupset picks up where traditional groupsets left off.
Innovation is most powerful when it not only pushes the boundaries of the status quo, but when it enhances performance, elevates experience and serves as a solution to long- standing problems. The VISTAR drop bar groupset from TRP achieves all of those and is an example of innovation at its best.
Through application of world -class engineering, decades of manufacturing leadership, strategic partnerships and an unwavering commitment to the most
demanding kind of innovation, TRP introduces VISTAR.
We set out to develop a drop bar groupset that would redefine cycling.
The VISTAR development project would not have succeeded without the vision and drive to develop a groupset that could redefine road and gravel cycling. As a result of our research, we identified ways to improve upon traditional 2x drivetrains. We sought to eliminate the fragility of front derailleurs and the unreliability of front shifting. Our primary belief was that a better solution could be conceived and that we were the right development team to bring that solution into existence.
Enter Classified
The demands of road cycling are clearly different than those of mountain biking where wide-ratio, 1x12 gearing matches the abrupt and varied changes typical of offroad terrain. We needed a way to maintain small steps between gears to allow riders to maximize efficiency while matching the progressive and dynamic power output characteristic of road, gravel and other types of endurance cycling.
TRP connected with Classified Cycling, an innovative startup company based in Antwerp, Belgium with what we recognized could be the ideal complimentary technology. Their internally geared 2-speed hub was the last ingredient to allow the VISTAR groupset to maintain a full range of gearing suitable for endurance cycling. The final result is a drop bar groupset built around 1x architecture utilizing the latest wireless shifting protocols, class-leading hydraulic disc brakes, advanced composite and alloy materials and an internally geared 2-speed hub to maintain proper gear ratios for endurance cycling.
Connection That Counts
The TRP CMD, or "Command" system, utilizes wireless protocol for seamless communication between components such as shifters, derailleurs, and accessories. This technology eliminates the need for conventional cables and housing, enhancing both the visual clarity and aerodynamic efficiency of the bicycle.
Riders can modify shifting behaviors, adjust derailleur trim, customize component names, and monitor battery status with ease.
Download The CMD App
Simplified Shifting For Enhanced Focus
Quantum Shift
QuantumShift utilizes the rear derailleur, cassette, and Powershift hub to create 16 unique gears (15 gears for gravel), all controlled with a single hand on the shifter. This technology eliminates concerns about chainline and inappropriate shifting behavior, ensuring a seamless and enjoyable cycling experience.
Riders can now enjoy the ease of a 1x drivetrain with the performance benefits of a 2x system, making every ride smoother and more efficient.
QuantumShift utilizes two shift paths to provide the ideal gear ratio changes for the best efficiency and power. It also optimizes when both the hub and derailleur shift together, for faster, precise shifting.
The blue arrows indicate the gear ratio path when shifting to a higher ratio (harder gear) with appropriate gear steps to quickly gain speed. The green arrows indicate the gear ratio path when shifting to a lower ratio (easier gear) with closer gear steps for more efficient downshifting and incremental changes for climbing. At any point, the rider can manually override the shifting when needed.
Build Your Vistar Drivetrain
Follow these steps to piece together the perfect VISTAR drivetrain to suit your needs.
Step 1: Select Your Shift-Brake Kit
TRP
VISTAR Shift-Brake System
The VISTAR Shift Brake System puts the power of TRP’s CMD wireless ecosystem in your hands, offering fully programmable shifting — including QuantumShift 1x16 for, 1x15 for gravel and 2x12 manual mode— through the TRP CMD App. Seamless integration with all CMD-compatible components ensures a personalized, connected ride. Paired with TRP’s proven hydraulic braking tech, VISTAR delivers precision, control, and confidence on every ride.
VISTAR Shift-Brake System
Right Hand
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 2: Select Your Derailleur
TRP
VISTAR Derailleur
Engineered for peak efficiency in demanding conditions, the Vistar rear derailleur delivers immediate, wireless shifting via our proprietary CMD protocol. Each shift is powered by a high-torque, low-power motor, ensuring rapid, precise gear changes with minimal energy draw. Designed for 1x16 (Road)/ 1x15 (Gravel) QuantumShift compatibility, it offers seamless, silent, sequential shifting—and customizable, traditional 2x-style shifting with the Classified Powershift hub.
VISTAR Derailleur
Road RD-C8000E (34T Max)
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 3: Select Your Cassette
TRP
VISTAR Cassette
Precision-engineered from a single steel Monoblock, the VISTAR Cassette delivers smooth, reliable shifting with zero compromises. It’s built for durability, optimized for weight, and is fully compatible with the Classified PowerShift hub.
VISTAR Cassette
Road / 11-30T Road (CL8030-12)
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 4: Select Your Crank
TRP
VISTAR Carbon Crankset
The VISTAR Crankset is purpose-built for gravel and endurance riding, where wider-range gearing and lasting reliability are key. Its design prioritizes strength and efficiency, making it ideal for steep grades, variable terrain, and fully loaded adventures. Whether you're chasing podiums or riding deep into the unknown, the VISTAR Crankset is ready to go the distance.
*chainring not included
VISTAR Carbon Crankset
Gravel / 165mm
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 5: Select Your Chainring
TRP
VISTAR Chainring
Engineered for performance across road and gravel, the VISTAR Chainring delivers precise power transfer and exceptional chain retention in any condition. Featuring an advanced wave tooth profile, it grips the chain securely without the need for a chain guide, keeping your drivetrain quiet and efficient
VISTAR Chainring
Gravel / 44T Gravel (CR-G8000)
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 6: Add Your Bar-End Controller Unit
TRP
VISTAR Bar-End Unit
The VISTAR bar-end unit is a compact communication hub that enables connectivity between VISTAR components and all CMD ecosystem-compatible hardware.
VISTAR Bar-End Unit
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Unlock Vistar With A Classified Powershift Hub and Wheelset
To fully unlock the VISTAR advantage, pair the drivetrain with a Classified wheelset with Powershift hub.
Step 1: Select your wheelset
Classified
Classified G30 Carbon Wheelset
The G30 is purpose-built to seamlessly integrate with the POWER SHIFT rear hub, delivering exceptional performance on both road and gravel terrain. With a 30mm rim depth and a wide 23mm internal width, it offers a stable platform for wider tires and confident handling across varied surfaces. Tubeless-ready and optimized for 32–42c tires at lower pressures, the G30 is ideal for riders seeking comfort, traction, and efficiency on mixed terrain adventures.
Classified G30 Carbon Wheelset
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Classified
Classified R35 Carbon Wheelset
The R35 is our all-around road wheel of choice—engineered for performance across all conditions. Featuring a lightweight 35mm rim depth and a 19mm internal width, the R35 delivers the perfect balance of aerodynamics, responsiveness, and control. Optimized for tubeless setups and compatible with 25–32mm tires, it’s built to handle high tire pressures with confidence
Classified R35 Carbon Wheelset
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Classified

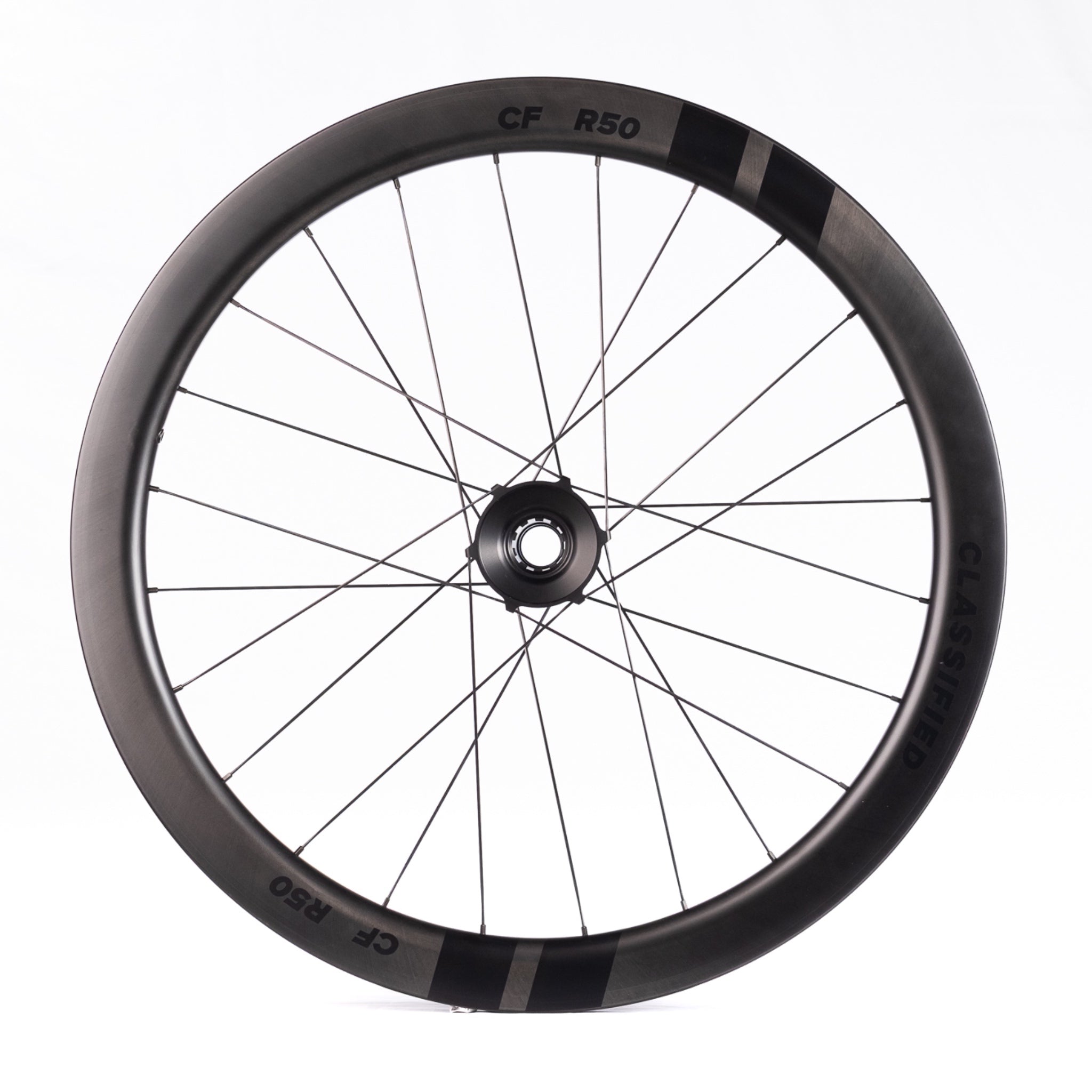

Classified R50 Carbon Wheelset
The Classified R50 Carbon Wheelset is engineered for pure speed, efficiency, and aerodynamic performance. With a 50mm deep carbon rim and 12x100mm thru-axle compatibility, it delivers the stiffness and responsiveness demanded by modern road riders. Built to pair seamlessly with the Classified Powershift system, the R50 offers a lightweight, race-ready platform for high-performance road cycling.
Classified R50 Carbon Wheelset
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 2: Add a powershift Hub
Classified
Classified Powershift Hub CD27
The VISTAR PowerShift Hub is a high-performance 2-speed internal rear hub designed for seamless, under-power shifting in under 150 milliseconds. This complete set includes the 142/148mm hub, cassette driver, center-lock lockrings, and hub-shell lockring—ready to drop into modern gravel and road builds for instant gear range expansion without a front derailleur.
Classified Powershift Hub CD27
142mm (CD27 Cassette Driver)
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 3: Select The Right Size Axle
Classified
Classified Smart Thru-Axle
Engineered for precision and speed, the Classified Thru-Axle enables instant gear shifts via a fully integrated wireless system. Bluetooth communication links the shift button directly to the internal hub, triggering gear changes through a proprietary contactless energy transfer—no cables, no delay, just pure performance.
Classified Smart Thru-Axle
155.5mm
TRP Cycling/ Tektro USA
688 West Amidan Drive
BLDG 4X-1
Ogden UT 84404
United States
Step 4: Add a torque arm
Classified

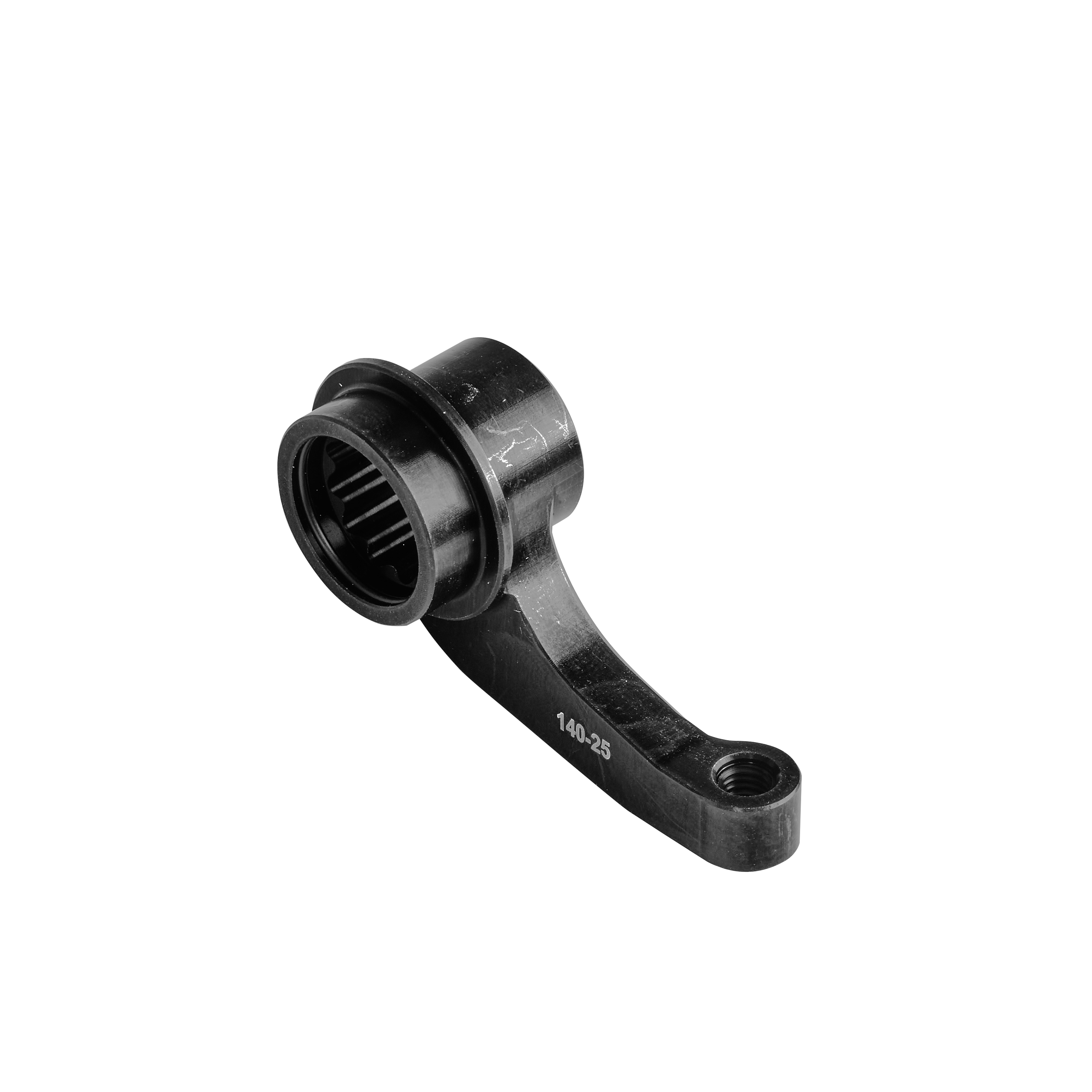

Classified Torque Support Arm
Classified Cycling Torque Arms brace your Powershift hub against your bike so you get unrivaled shift quality, high gearing range and small steps in between gears combining the benefits of both 1x and 2x drivetrains.
Classified Torque Support Arm
140-25
